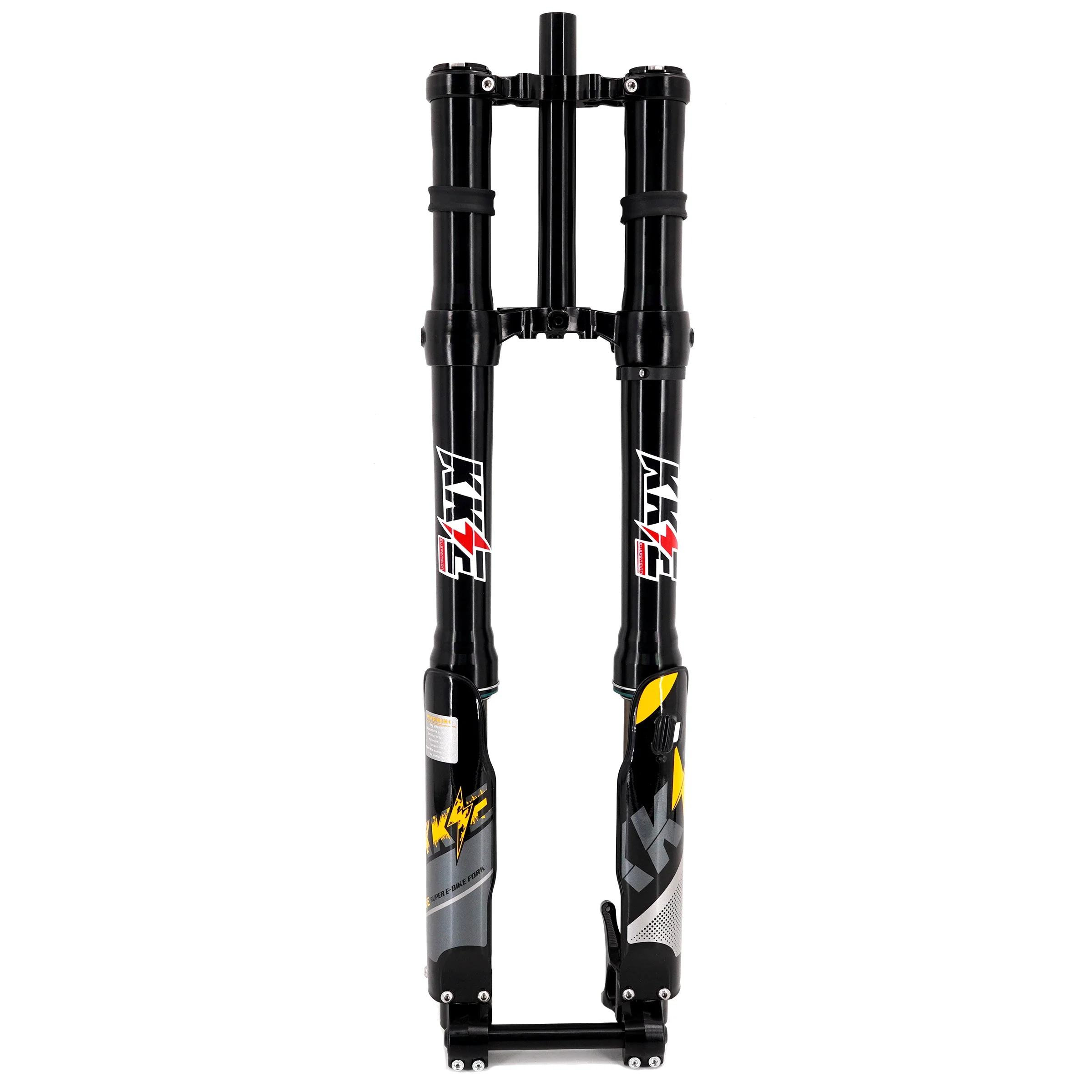

KKE 37MM Aluminum Front Fork Suspension Kit
KKE High-quality Front Fork For Talaria Sting MX3 / R MX4
Ā
Specifications:
- Length ļ¼Axle to Crown): 750mm
- Travel: 210mm
- Fork Offset: 32mm
- For Rider Weight: 46lbs SpringĀ (23Ibs on each side) Fit 175pounds~220pounds riders weight
- Architecture: Upside down fork
- Stanchions: 37mm, 7000 aluminum hard anodized coating
- Outer tubes: 6069 aluminum, anodized black
- Dropouts: 6061 aluminum, anodized black
- Triple clamps: 6061-T6 aluminum, CNC-machined finishing
- Steer tube: 28.6mm,6061-T6 aluminum
- Damping: Symmetrical, adjustable open cartridge
-
Damper bodies: 7050-T6 aluminum, anodized coating
- Weight: 5.3kg(include triple clamp set)
- Adjustments: Compression, Rebound,Preload
- Axle: 20mmā¢ Axle to Crown: 750mm @ 210mm of travel
- Seals: SKF
- Guards: PP
- Spring: Coil
Bike Fitment:
- Talaria MX3 / MX4 / XXX / XXX Pro
- SurRon LBX, LBS, L1E
- Segway X-260 / X-160
- E-Ride Pro S / SS 1.0/2.0
- Rawrr Mantis X
- 79 Bike Falcon M / Pro / GT
- Ventus One / One +
- RFN Apollo
- Rerode R1 / R1 +
Features:
1. Lightweight designed fork leg with CNC-machined finishing, less unsprung mass,Ā better handing

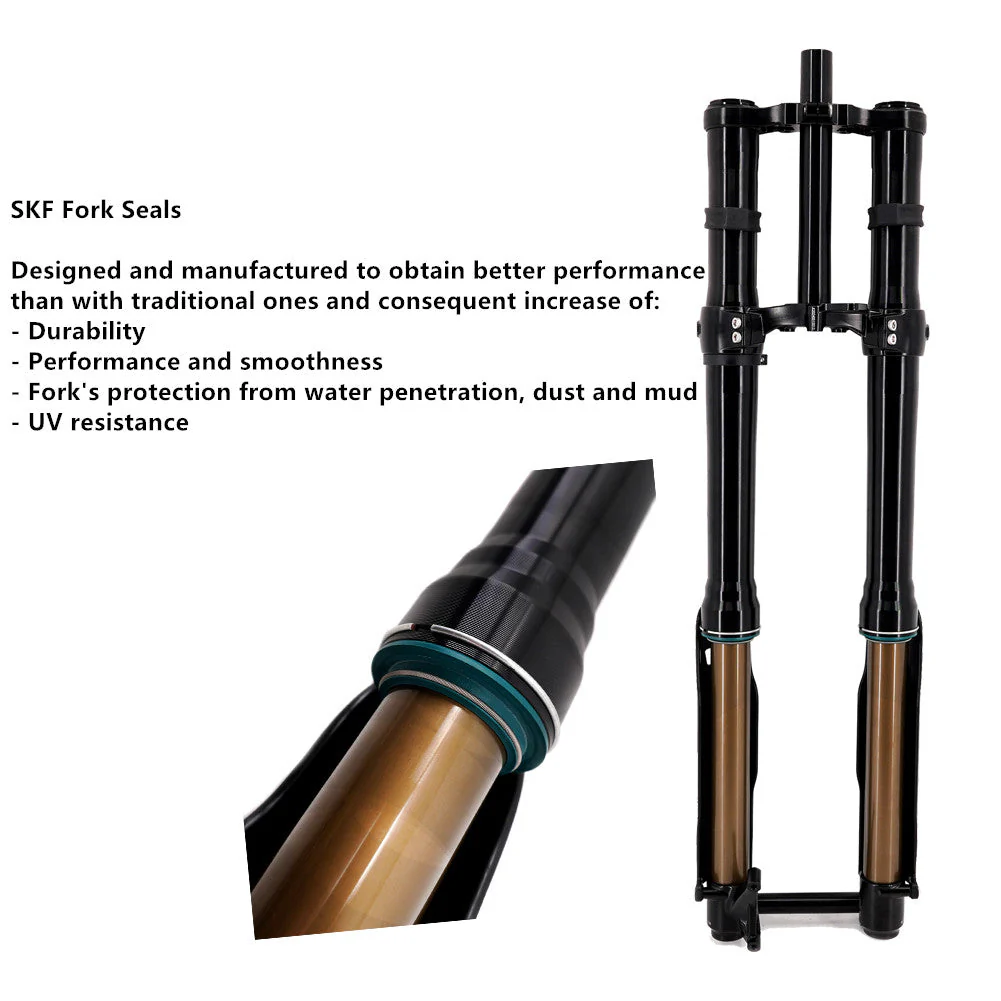

2. SKF oil seals and dust seals ,less friction ,more smooth
3. Alloy fork tube with DU-bushing guiding design ,better stiffness and torsional rigidity
4. 7000 alloy inner tube with hard-anodizing treatment surfaceĀ
5. Race-proven damping system with mid-valve stack and hydro stop function offering moreĀ progressive damping at the medium travel and more support at the endĀ
6. Every clicker of the compression/rebound / adjustment will find its way in differentĀ scenario
7. CNC triple clamp ,less weight ,more stiffness ,better looking
Ā
Recommendation for Riders:
- KKE Front Fork assembly with 46lbs Spring (23Ibs on each side)Ā Fit 175pounds~220 pounds Riders Weight
- Note: If you have any other request or over weight, please feel free to contact us for more details
Ā
Ā
Package Included:
- Assembled Front Fork 1set
- Note: We matched left mudguard & right mudguard, Not installed!
Ā
Color:
-
Black
Placement on Vehicle:
- Front Fork
Maintenance:
Your fork requires periodic maintenance, cleaning, and inspection. Torque values of bolts andĀ fasteners must be checked periodically, more often if riding in extreme conditions. To maintainĀ top performance, it is recommended that the fork be periodically disassembled, cleaned, driedĀ and re-lubricated.
SUGGESTED SERVICE INTERVALS FOR DORADO
(Extreme riding and harsh conditions may require more frequent service)
Contact Us:
- If you have any question or needs, just feel free to contact us!
- Email: [email protected]
